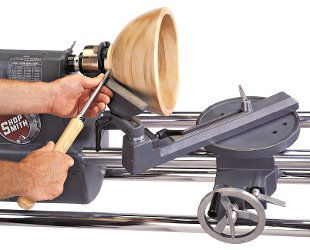

The 35-pound Universal Lathe Tool Rest will do more to improve your lathe yurning results than any other tool! This heavy, rigid, cast iron tool rest system gives you all the rock-solid lathe tool support and reach you'll ever need. You'll quickly "hog-out" huge amounts of waste or deliberately and delicately produce intricate designs with equal ease and assured, super-smooth results every time.

Its unique triple-jointed design lets you swing the arm and support in any direction to position your tool rest deep within the deepest bowls, vessels or goblets - even around the back side of large diameter faceplate or chuck-mounted turnings.

No more annoying vibrations, chatter, or tool rest flexing. Whether you're turning with a faceplate, chuck or between centers, scraping or shearing, the added mass and rigidity with adjustment flexibility of this system will make a big difference in your turning results from now on.

Simply remove your MARK’s (for All MARKs except 10-ER and Mark II) worktable from the table carriage, set the 10" diameter by 1" thick cast iron mounting plate on top of the carriage, tighten the two bolts that go into the clamp under the carriage and go to work.

A quick twist of the locking lever loosens the 18-1/4" long support base arm. Rotate it a full 360-degrees, move it left or right and lock it firmly at any point along its 7-3/8" of travel.

Slip the rotating tool support arm into the support base arm and lock it into position with another quick-acting lever. The rugged 1" diameter steel post in the support arm gives you a full 2" of up-down travel allowing you to position Shopsmith's standard tool rest anywhere from 1/2" below to 1-1/2" above your work-piece centerline. An adjustable stop collar and height setscrew let you return to a pre-set height instantly. Any of the four available Shopsmith tool rests lock into the tool support arm with a convenient third lever.

Universal Lathe Tool Rest System Includes:

• 10" diameter by 1" thick cast iron mounting base with precision machined support base bearing surfaces

• Rigid, 18-1/4" by 1-3/8" by 2-1/2" Cast Iron Support Base Arm with a 7-3/8" travel

• 4-3/8" by 1-1/2" Steel Tool Support Arm with 1" diameter steel mounting post and adjustable depth-stop collar

• Three Locking Levers for quick adjustments without tools or wrenches

• All necessary mounting hardware.
