From first checks to first cuts—get your Shopsmith running like new!
Whether you inherited a Shopsmith multipurpose machine, acquired a machine but haven’t gotten started, or you have been doing woodworking for a while but are new to Shopsmith tools, this page will guide you through the process of what to do to get started and on your way to making incredible projects.
10
Things You Absolutely MUST Know Before You Get Started!
Regardless of how you came to own a Shopsmith Multipurpose Woodworking Machine, you can rest assured that you own the world’s most versatile, most compact, and the absolute best woodworking tool available. And, you probably can’t wait to GET STARTED!
02
These are the sliding pulleys that drive the spindle on Models 500, 510 or 520 machines. If your machine has been sitting unused for awhile, this is an important procedure. For details, Click Here
04
from the way tubes and/or bench tubes with a fine, green abrasive pad or #0000 steel wool. Apply furniture PASTE wax to way tubes, the top surfaces of work table, extension tables, and both sides of rip fence. This helps these components slide smoothly and provide a near-friction-free surface for work pieces to glide on or against.
06
NEVER use an extension cord that’s lighter than 14 gauge or longer than 25 feet, as doing so will cause blown fuses or breakers.
08
with a conventional speed dial Smart Motor, always turn the speed dial to “D” or slower before turning it off. Starting the machine at high speeds will cause damage to the switch and motor, as well as blow fuses or breakers.
10
go ahead and give your machine a trial run. ENJOY!
01
Doing so without the machine running will damage your machine!
IMPORTANT: If your machine’s speed dial is NOT set to “D” or below, contact Customer Service for the proper re-setting procedure before turning your machine on.
03
or other tools that may be attached to the headstock (motor) spindle. If any tools are stuck in position, apply a few drops of a good penetrating oil to its set screw and try again tomorrow.
05
Misalignment of some components could cause personal injury. Detailed alignment instructions are included in the Owner’s Manual.
07
If your machine doesn’t start, call Customer Service and they will assist you in solving the problem. Once started, listen for any shaking or rumbling noises and feel for vibrations that could indicate a problem. If either is detected, contact Customer Service immediately for possible causes and solutions.
09
Your comprehensive Owner’s Manual and User’s Guide will familiarize you with the machine’s components & start-up procedures. Our printed manuals are extensive and informative. If you’re eager to get started and DON’T have a printed manual, you can download a copy of our Quick-Start Summary Owner’s Manual.
Woodworking is inherently hazardous. Before using any hand or power tool, read, understand and follow all safety precautions included with your tools. Ignoring these precautions could result in personal injury. Always wear eye protection and use the guards and work-handling safety devices that come with your tools. The safety equipment is designed to keep you out of harm’s way. If you don’t know how to perform an operation safely, read your manuals or call Shopsmith toll-free at 1-937-890-5197.
10
Things You Absolutely MUST Know Before You Get Started!
Regardless of how you may have come to own a Shopsmith Multipurpose Woodworking Machine, you can rest assured that you own the world’s most versatile, most compact, and the absolute best woodworking tool available. And, you probably can’t wait to GET STARTED!
01
Doing so without the machine running will damage your machine!
IMPORTANT: If your machine’s speed dial is NOT set to “D” or below, contact Customer Service for the proper re-setting procedure before turning your machine on.
02
These are the sliding pulleys that drive the spindle on Models 500, 510 or 520 machines. If your machine has been sitting unused for awhile, this is an important procedure. For details, Click Here
03
or other tools that may be attached to the Smart Motor spindle. If any tools are stuck in position, apply a few drops of a good penetrating oil to its set screw and try again tomorrow.
04
from the way tubes and/or bench tubes with a fine, green abrasive pad or #0000 steel wool. Apply furniture PASTE wax to way tubes, the top surfaces of work table, extension tables, and both sides of rip fence. This helps these components slide smoothly and provide a near-friction-free surface for work pieces to glide on or against.
05
Misalignment of some components could cause personal injury. Detailed alignment instructions are included in the Owner’s Manual.
06
NEVER use an extension cord that’s lighter than 14 gauge or longer than 25 feet, as doing so will cause blown fuses or breakers.
07
If your machine doesn’t start, call Customer Service and they will assist you in solving the problem. Once started, listen for any shaking or rumbling noises and feel for vibrations that could indicate a problem. If either is detected, contact Customer Service immediately for possible causes and solutions.
08
with a conventional speed dial Smart Motor, always turn the speed dial to “D” or slower before turning it off. Starting the machine at high speeds will cause damage to the switch and motor, as well as blow fuses or breakers.
09
Your comprehensive Owner’s Manual and User’s Guide will familiarize you with the machine’s components & start-up procedures. Our printed manuals are extensive and informative. If you’re eager to get started and DON’T have a printed manual, you can download a copy of our Quick-Start Summary Owner’s Manual.
10
go ahead and give your machine a trial run. ENJOY!
Woodworking is inherently hazardous. Before using any hand or power tool, read, understand and follow all safety precautions included with your tools. Ignoring these precautions could result in personal injury. Always wear eye protection and use the guards and work-handling safety devices that come with your tools. The safety equipment is designed to keep you out of harm’s way. If you don’t know how to perform an operation safely, read your manuals or call Shopsmith toll-free at 1-937-890-5197.
Most Common Mark V Problems / Solutions
Symptom | Solution |
|---|---|
Smart Motor lock squeaks when tightening | Clean threaded rod with wire brush, then lubricate with powdered graphite
|
Sandpaper difficult to remove from disc | Heat in oven, with iron or heat gun to soften glue
|
Saw blade hits table insert when tilting table to 45-degrees | Extend quill to achieve necessary clearance
|
Smart Motor is difficult to slide on way tubes | Wax (or rotate) way tubes
|
Bit drills deeper than setting on depth dial | Check quill spring housing to see if spring has slipped. Make sure indentation on quill spring housing aligns with setscrew used to lock housing in place
|
Depth control dial won’t lock | Check serrated washers. Clean with wire brush or replace
|
Nothing happens when turning machine on | Check for loose wires. Replace switch, if necessary
|
Speed dial is difficult to turn | Oil sheaves. Check speed control quadrant assembly for lubrication
|
Circuit breaker blows when you turn machine on | Check to see if you turned off your machine on high speed. If so, unplug your machine and install the sanding disc. Rotate the disc counter-clockwise by hand while turning the speed dial to slow
|
Machine bogs down when ripping | Re-tension the Poly-V Belt to have no less than 1/8-inch deflection
|
THE CONVENTIONAL MARK HEADSTOCK IS BACK!
DEFYING CONVENTION FOR OVER 70 YEARS
For those who’ve been waiting, collecting, or just have a soft spot for the classics, this is for you! Shopsmith is offering a limited amount of new, up-to-date Conventional/Mechanical Headstocks with the latest motor, belt, bearing and sheave technology.
Mike Young's Webinar
Shopsmith Live Online Demonstration & Sales Events are live seminars that are held via the Internet.
-
Making income in woodworking by building furniture for the family or friends;
-
Maybe you are thinking of tackling those D-I-Y projects, but need better tools;
-
Perhaps you want to save money and remodel or repair at your own pace.
Either way, our Live Online Demonstration & Sales Events can help you decide what you may want to do, and what tools you may need to get the job done! Professional or beginner, male or female, young or mature, join us to learn why Woodworking, D-I-Y, and Maker Spaces are popular, and let us help get you where you want to go.
Mike Young's Webinar
Shopsmith Live Online Demonstration & Sales Events are live seminars that are held via the Internet.
-
Making income in woodworking by building furniture for the family or friends;
-
Maybe you are thinking of tackling those D-I-Y projects, but need better tools;
-
Perhaps you want to save money and remodel or repair at your own pace.
Either way, our Live Online Demonstration & Sales Events can help you decide what you may want to do, and what tools you may need to get the job done! Professional or beginner, male or female, young or mature, join us to learn why Woodworking, D-I-Y, and Maker Spaces are popular, and let us help get you where you want to go.
Switch Between Tools in Under a Minute
Ask any Shopsmith Owner about changeovers and you’ll quickly be told that the issue practivally never enters their mind. Changeovers become second nature and are normal steps you take to complete your project. (Note: PowerPro Smart Motor shown with Drill Press)
40
Seconds

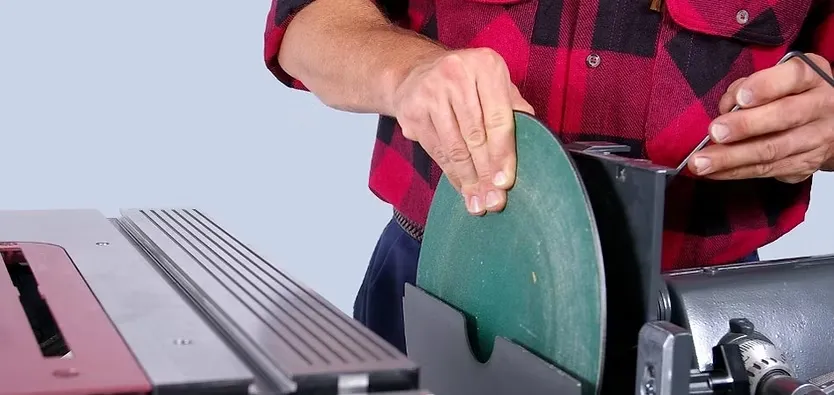

Drill Press to Lathe
54
Seconds

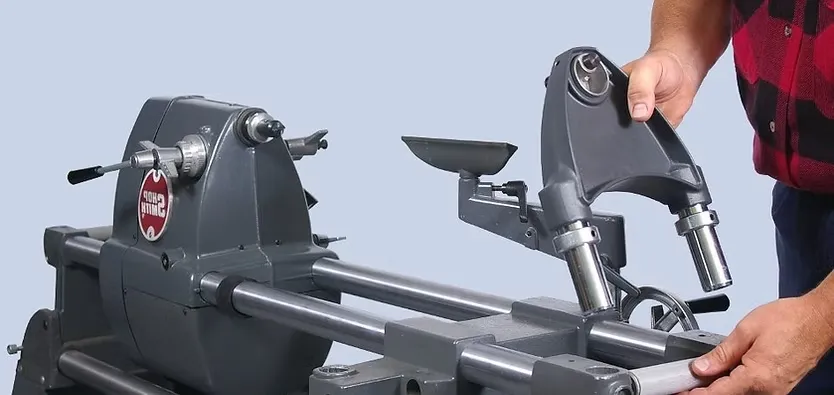

Lathe to Table Saw
34
Seconds

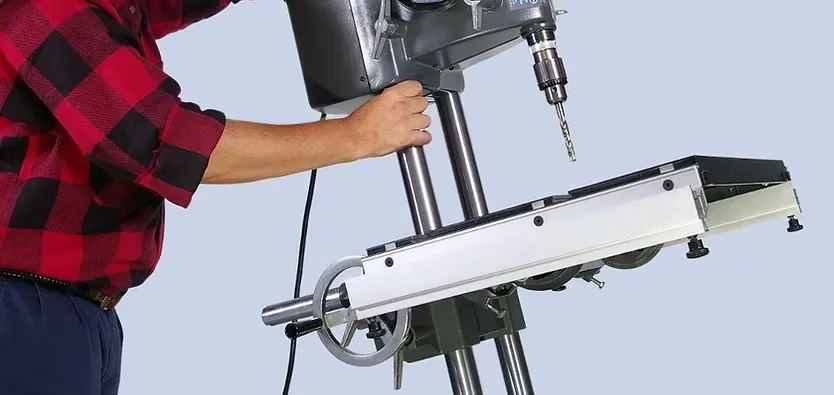

Table Saw to Disc Sander
32
Seconds

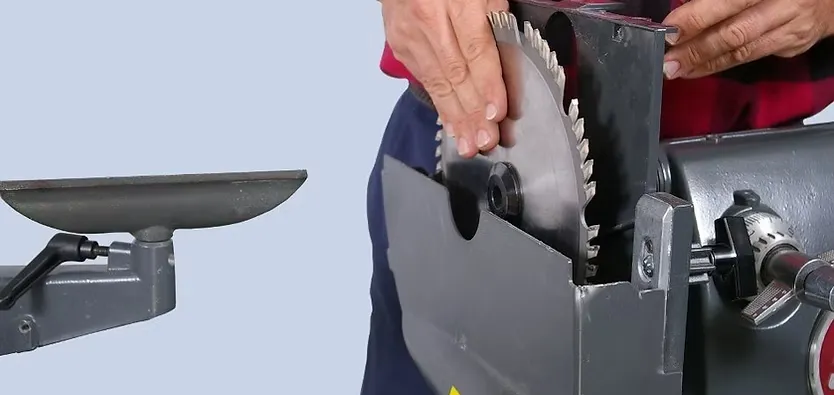

Horizontal Boring Machine to Drill Press
17
Seconds

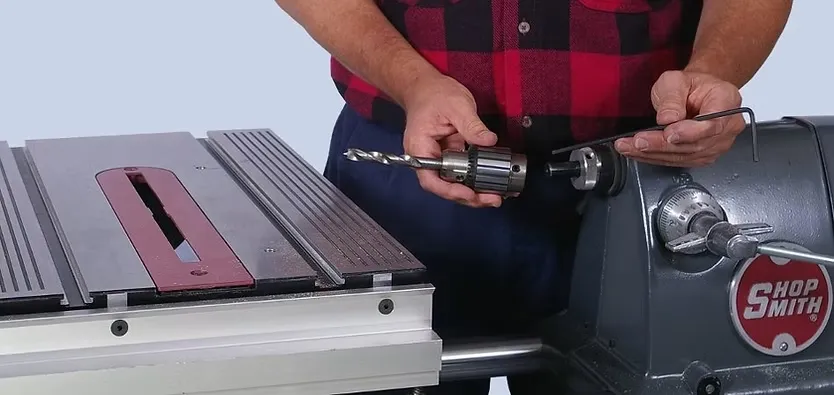

Disc Sander to Horizontal Boring Machine
