Seven tools. One precision workshop.
Drill press, horizontal boring, lathe, table saw, disc sander, over-table router and under-table shaper in one upgradeable American-built machine.

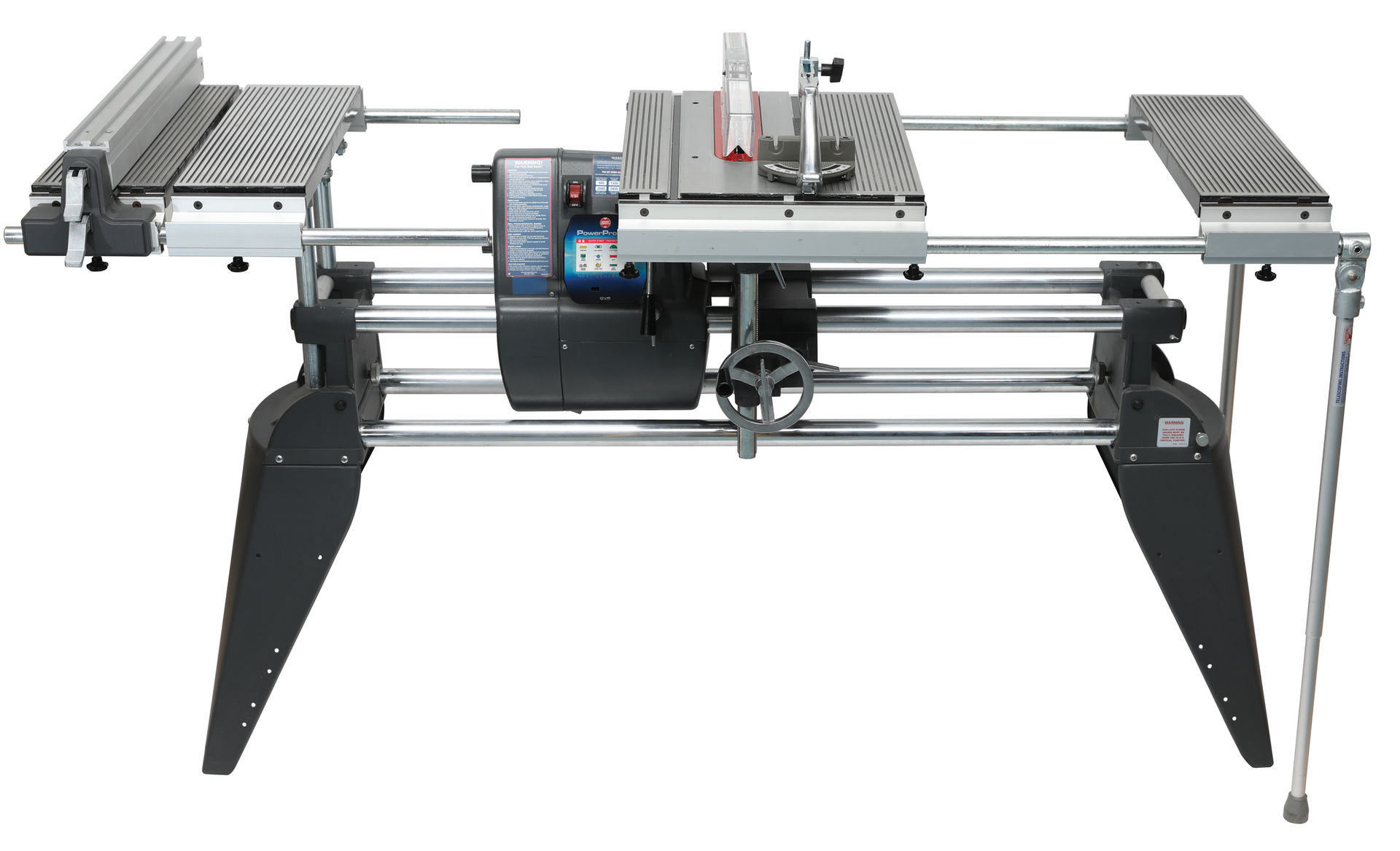

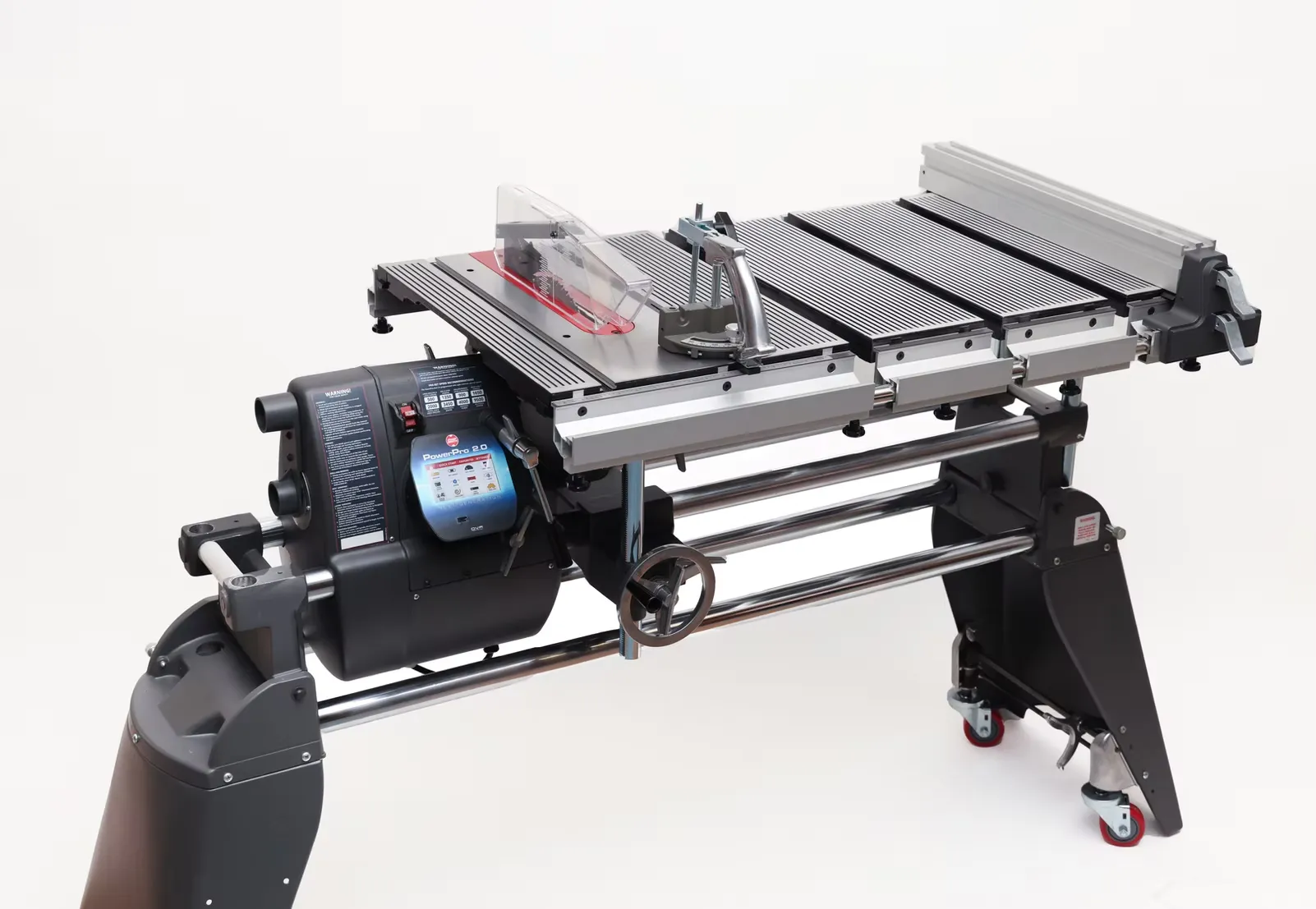

MARK 7
Seven woodworking tools in the footprint of one. Built in America with the digital PowerPro smart motor — designed to be upgraded, not replaced.
The 7 Functions of the MARK 7
One machine converts between seven precision woodworking modes. No second machine. No second footprint.

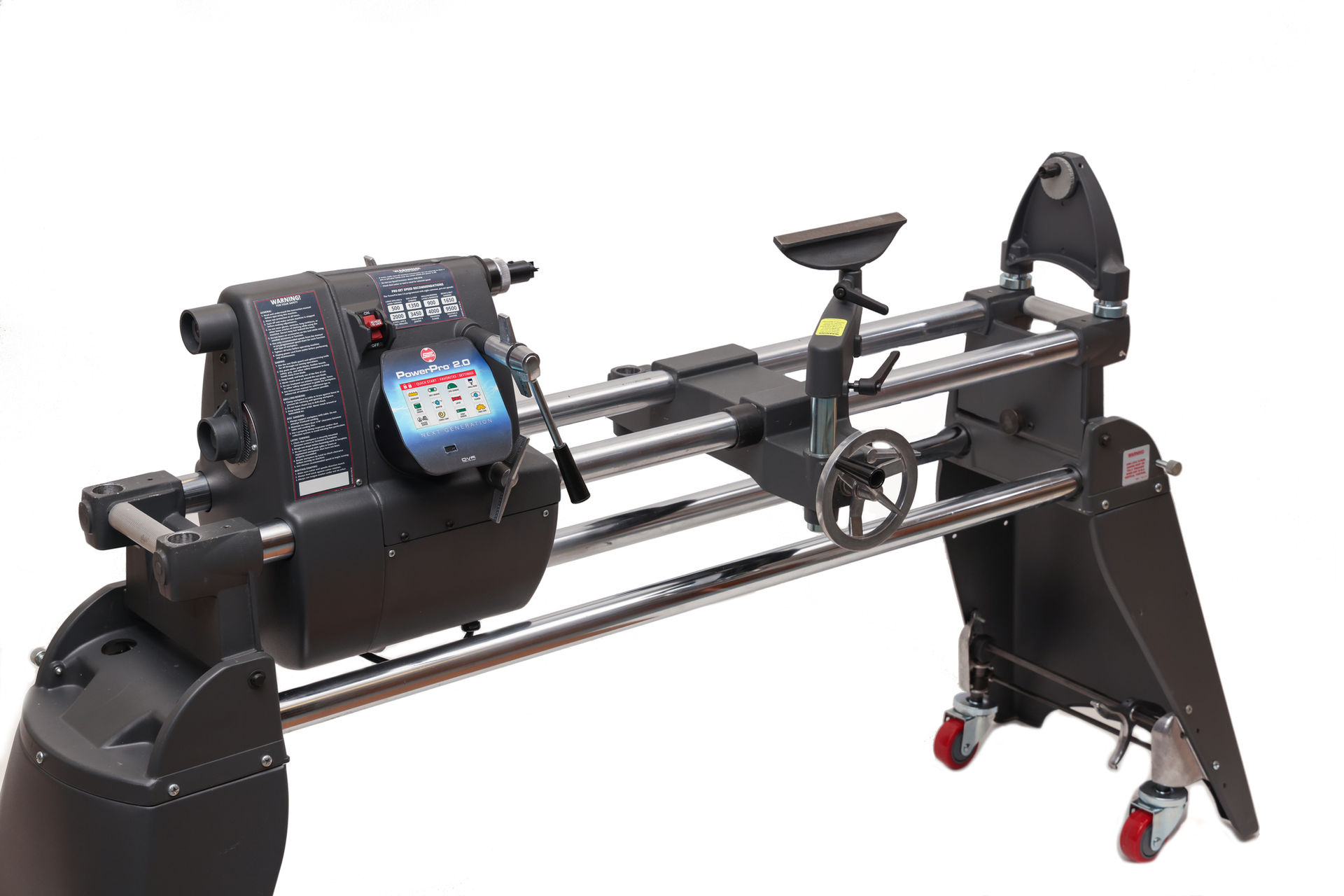

34" Lathe
Turn bowls, platters, chair legs and stair spindles. Full variable speed and reversible rotation let you match the machine to the wood.
- Swing
- 34"
- Speed
- Variable, reversible
- Use
- Spindle & bowl turning
Seven Tools in the Space of One
Seven separate stationary tools require approximately 200 sq ft of floor space. The MARK 7 stores in a 2 × 6 foot area — that's 24 sq ft — and rolls on casters wherever you need it.
Inside the MARK 7
22 precision components — hover, focus or click any number to learn what it does.

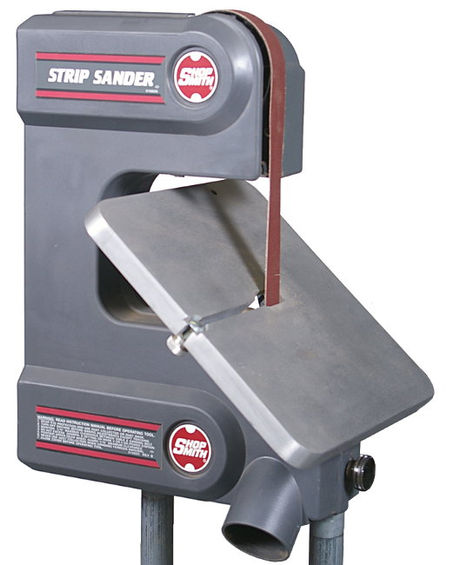

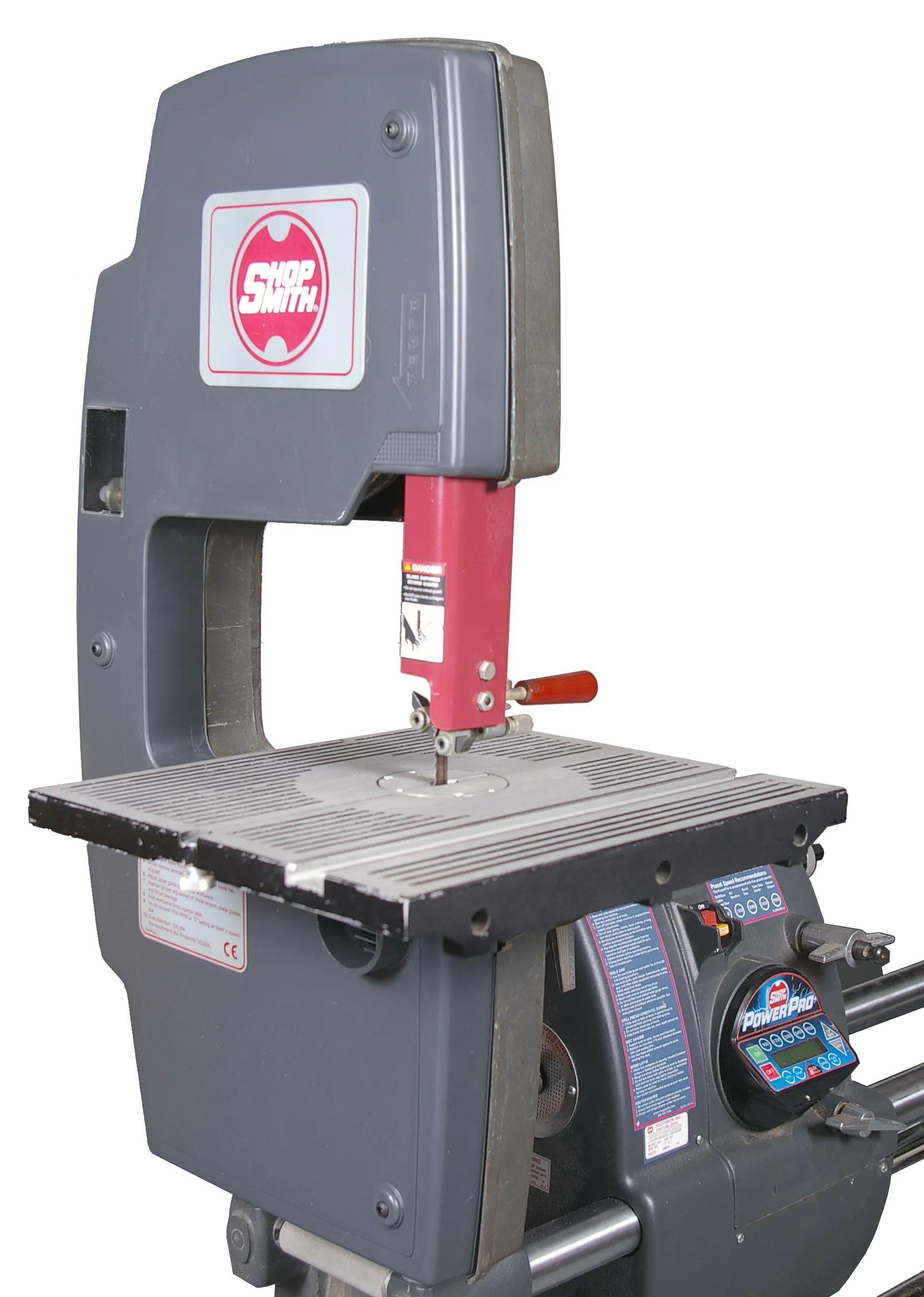

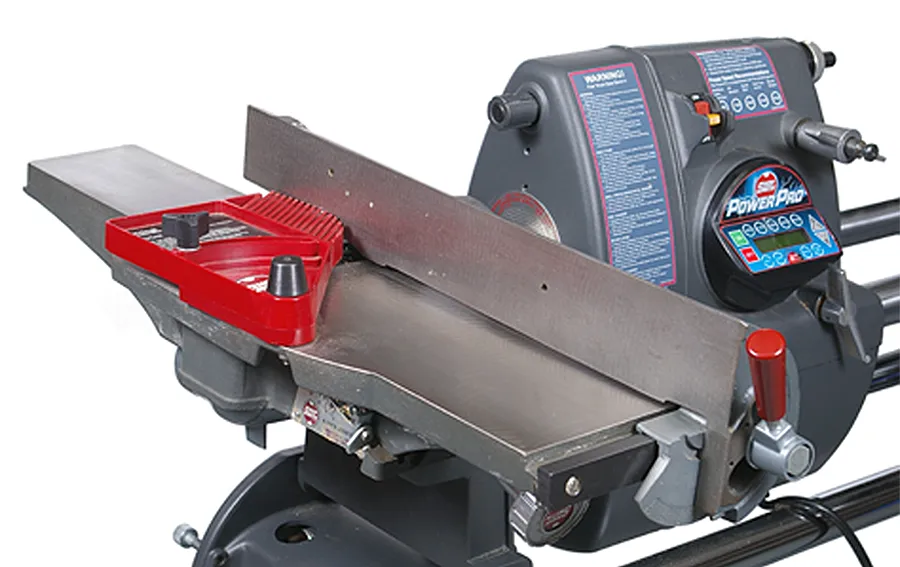

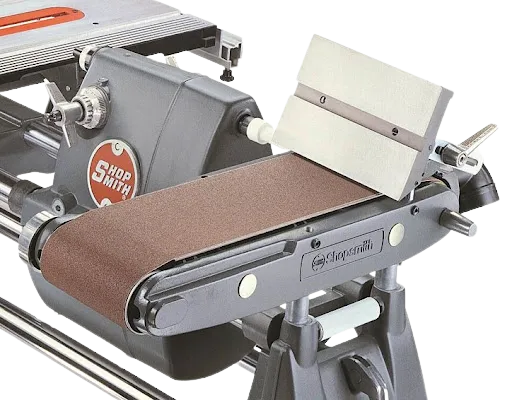

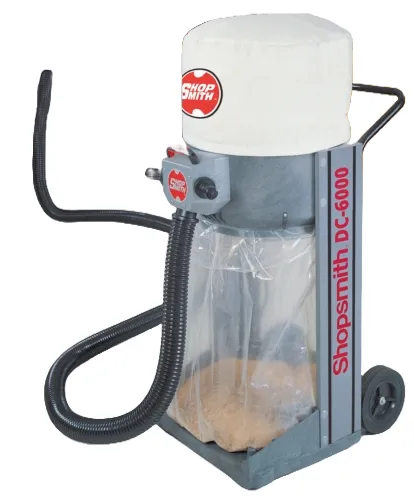

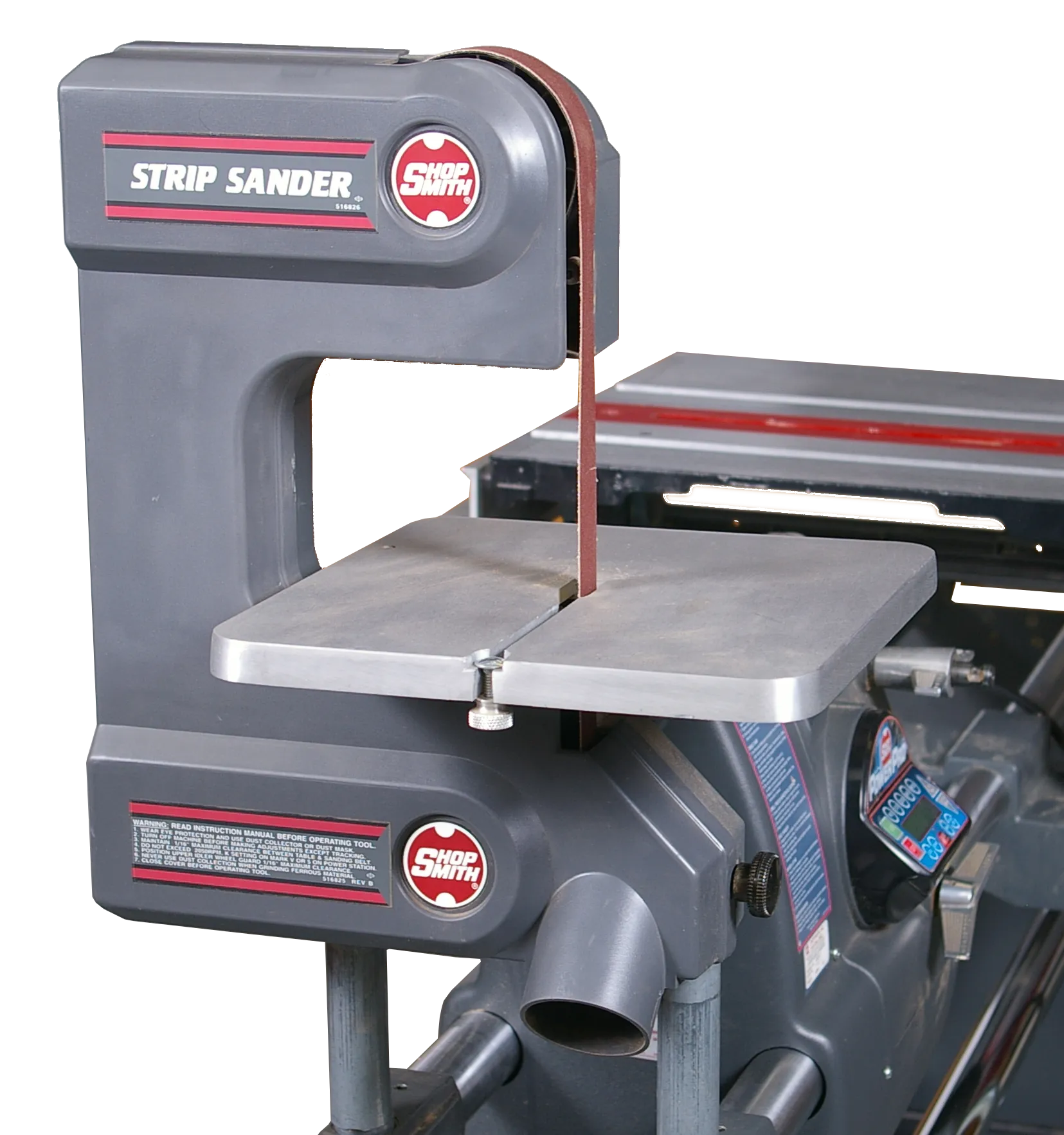

MARK 7 Attachments
Every attachment is hand-assembled in Dayton and built to order. Add capabilities as your skills grow.
A Feature-by-Feature Comparison
Not sure which MARK to choose? Both are exceptional — but each suits a different woodworker. Use this chart to find the system that matches where you are today and where you want to go.
| Feature | MARK 7 | MARK 5 |
|---|---|---|
| Tools included | 7 | 5 |
| 10" Table Saw | ✓ | ✓ |
| 34" Lathe | Spindle + 16-1/2" bowl turning | Spindle + 16-1/2" bowl turning |
| 12" Disc Sander | ✓ | ✓ |
| Horizontal Boring | ✓ | ✓ |
| 16-1/2" Drill Press | 25" chuck-to-table | 25" chuck-to-table |
| Over-Table Router | ✓ | — |
| Under-Table Shaper | ✓ | — |
| Motor | 1 3/4 HP at 110V, 2 HP at 220V | 1-1/8 HP Conventional Motor (Reeves Drive) |
| Speed range | 250-10,000 RPM | 700-5,200 RPM |
| Pre-set speed database | ✓ | — |
| Footprint | 71" long | 71" long |
| Floating extension tables | ✓ | ✓ |
| T-Track fence system | ✓ | ✓ |
| Work packages available | — | ✓ |
